Flexible Intermediate Bulk Containers (FIBCs), commonly known as ton bags, bulk bags, or jumbo bags, are the backbone of global industrial logistics. Fabricated from heavy-duty woven polypropylene (PP) flat yarns and fitted with strong lifting loops, inner liners, and tie cords, these massive containers safely transport hundreds of thousands of tons of chemicals, minerals, agricultural grains, and polymer resins daily. However, once retired from service, these tough, high-tenacity woven structures present an extraordinary recycling challenge. When facilities attempt to process waste bulk bags using conventional size-reduction machinery—such as high-speed hammer mills or blunt impact crushers—the results are catastrophic.
Instead of cutting the woven PP fabric cleanly, high-speed impact machines stretch the high-tenacity fibers, causing them to slip past blunt edges and wind tightly around rotor shafts. This coiling generates intense frictional heat that melts the polypropylene into a gummy, rock-hard mass, blinding discharge screens and seizing drive motors. Transforming tough waste FIBC bags into clean, uniform raw materials requires specialized mechanical engineering. Deploying a dedicated rotary shear shredder equipped with active hydraulic pusher rams, low-speed high-torque cutting rotors, and precision micro-gaps eliminates wrapping and thermal binding. This technical guide examines FIBC material rheology, rotary shearing kinematics, anti-clogging screen dynamics, and plant integration layouts for producing valuable recycled flakes.
Understanding why conventional size-reduction equipment fails when processing woven polypropylene bulk bags highlights the necessity of purpose-built rotary shear engineering:
Extreme Tensile Tenacity: Woven PP flat yarns exhibit exceptional tensile strength, resisting fracture under blunt impact and absorbing mechanical energy without tearing cleanly.
Centrifugal Coiling and Shaft Wrapping: As conventional high-speed rotors spin, loose strips of woven fabric and dangling lifting loops are driven centrifugally outward, sliding along the rotor body until they wedge tightly into gaps between the rotating drum and stationary end-walls.
Thermal Frictional Melting: Once a tight layer of polypropylene coils around a rotating shaft, continuous sliding friction generates rapid thermal buildup. Because polypropylene has a relatively low melting point, frictional heat fuses the material into a solid mass that locks up the drive train.
Screen Blinding and Choking: As soft shredded flake fractions are pushed against bottom discharge grates, flexible woven strips flatten out and seal the screen apertures like a valve, stopping material discharge and choking the chamber.
Overcoming the physical hurdles of waste FIBC bulk bags requires a synchronized mechanical design focused on active feeding, positive shearing, and unhindered discharge:
To eliminate material bridging and ensure consistent feeding of voluminous, bulky bulk bags, industrial rotary shear shredders utilize an active, horizontal hydraulic pusher ram. Guided by real-time motor load telemetry via the central PLC, the ram compresses piles of loose bags or dense bales firmly against the rotating cutting drum at a controlled, steady rate.
Operating at 60 to 90 RPM via high-reduction planetary gearboxes, the heavy solid-steel rotor features precision-milled pocket housings holding square indexable cutting inserts. These tools pass against adjustable stationary bed knives with a tight micro-gap clearance (0.5 mm to 1.0 mm), producing a clean, self-cleaning scissor cut that severs high-tenacity polypropylene yarns instantly before they can wrap.
To prevent screen blinding when processing damp or sticky packaging waste, rotary shear shredders utilize specialized perforated screens with optimized hole geometries and hydraulic cradle drop-downs, allowing technicians to clear material and inspect cutting edges instantly during routine maintenance.
The core defense against shaft wrapping and bearing failure is advanced end-plate isolation. Rotary shear shredders incorporate multi-stage grease-purged labyrinth seals and mechanical deflector plates between the cutting chamber and outboard bearing housings, completely blocking thin PP lint and dust ingress.
The table below summarizes mechanical characteristics, cutting precision, and wrapping resistance across primary size-reduction machines used in bulk bag recycling facilities:
| Shredding Platform | Operating Speed | Cutting Mechanism | Wrapping & Thermal Risk | Primary Industrial Application |
|---|---|---|---|---|
| Dedicated Rotary Shear Shredder | 60 – 90 RPM | Rotary scissor inserts vs. bed knife with screen | Low (Precision scissor cut and sealed shafts prevent coiling and heat) | FIBC bulk bags, ton bags, woven PP sacks, and uniform flake sizing |
| Industrial Hammer Mill | 1,000 – 1,500 RPM | High-velocity impact against grates | Catastrophic Failure (Woven yarns wrap rotor and PP melts from friction) | Brittle minerals and scrap metal (unsuitable for soft textiles) |
| Twin-Shaft Shear Shredder | 12 – 25 RPM | Intermeshing multi-hook tearing discs (No screen) | Moderate (Produces coarse, tangled strips requiring secondary sizing) | Primary coarse volume reduction of bulky baled bulk bag waste |
| High-Speed Cutter Grinder | 400 – 600 RPM | Open rotor against screen grates | High (Flexible woven strips choke screen holes and cause thermal binding) | Rigid plastic regrind (unsuitable for flexible woven bags) |
Processing abrasive mineral residues, chemical dusts, and sand mixed into used industrial FIBC bags subjects internal components to continuous sliding friction and impact shock:
Vacuum-Hardened D2 / DC53 Tool Steels: Cutting inserts and bed knives are forged from high-carbon, high-chromium tool steels heat-treated to 56–58 HRC, ensuring long service life and edge retention under continuous multi-shift operation.
Four-Way Indexable Cutting Inserts: Square concave cutters can be rotated 90 degrees when an edge shows wear, multiplying usable blade service life fourfold before requiring workshop regrinding or replacement.
Hardox 500 Chamber Armoring: Internal sidewalls, feed hoppers, and screen cradles are lined with bolted, replaceable Hardox 500 wear plates, protecting the structural chassis from abrasive scouring.
Outboard Bearing Isolations: Heavy-duty spherical roller bearings are housed externally in split plummer blocks separated from the cutting chamber by an open air gap and multi-stage grease-purged labyrinth seals.

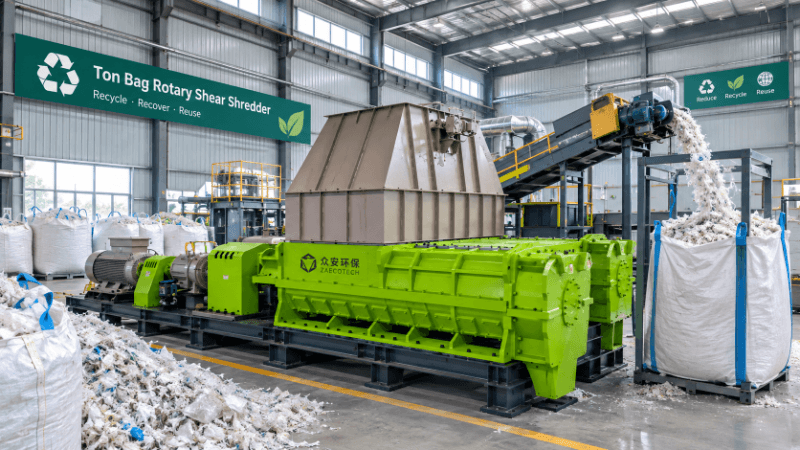

A high-performance FIBC recycling facility integrates a rotary shear shredder into a synchronized processing line to ensure a smooth transition from bulky waste to valuable flake output:
Stage 1: Bulk Waste Reception and Metering: Bales of post-industrial or post-consumer bulk bags are unloaded, inspected for heavy metal contaminants, and loaded onto heavy-duty slat conveyors.
Stage 2: Precision Rotary Shear Shredding: The hydraulic pusher ram feeds material into the low-speed rotary shear, cleanly slicing woven polypropylene against bed knives and passing them through calibrated bottom sizing screens.
Stage 3: Pneumatic Conveying and Washing: Sized PP flakes are captured by negative-pressure hoods, pneumatically conveyed past cross-belt magnets to remove tramp metal, and routed directly to downstream friction washers and extrusion pelletizing lines.
Operating heavy industrial machinery under continuous multi-shift schedules requires robust safety interlocks and automated protection systems:
Intelligent Reversing Drivetrains: If an uncrushable heavy metal object enters the cutting zone, the central PLC detects the electrical torque spike within milliseconds and executes an automatic reverse cycle to clear the obstruction, preventing drive damage.
Enclosed Dust and Lint Collection: Connecting all discharge chutes to a negative-pressure pulse-jet baghouse filtration system captures fine airborne polymer dust, maintaining a clean, safe working environment.
Hydraulic Access and Screen Cradles: Hydraulic cylinders tilt down the screen cradle effortlessly during routine maintenance, allowing technicians to inspect and swap screen meshes or rotate cutting inserts rapidly.
Successfully recycling waste FIBC bulk bags requires moving away from conventional impact crushing to specialized mechanical shear engineering. Deploying a dedicated rotary shear shredder—engineered with active hydraulic pusher rams, low-speed high-torque rotary scissor cutting, anti-blinding screen cradles, and multi-stage labyrinth shaft seals—solves the persistent problems of shaft wrapping, screen blinding, and thermal melting. This robust engineering approach ensures high operational uptime, low maintenance overhead, and pristine feedstock preparation for modern bulk bag recycling facilities.
