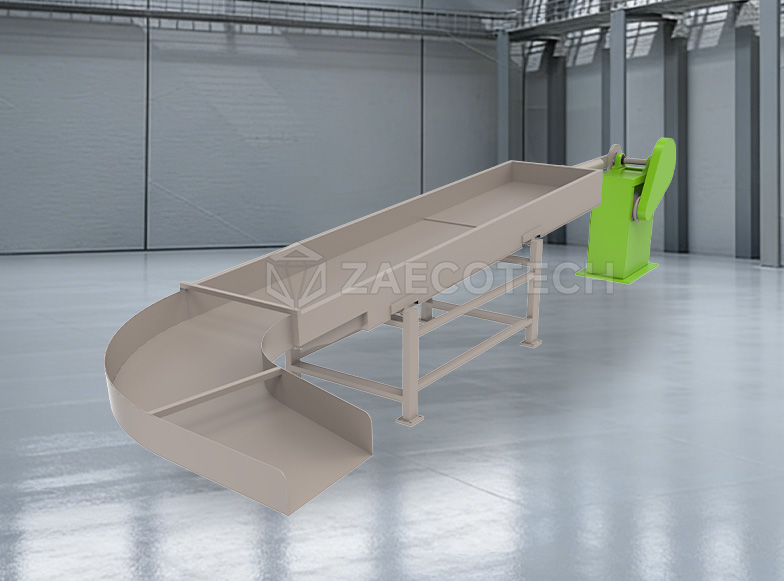

The reciprocating screen is specifically designed for the size screening of granulated materials after crushing. Powered by a motor-driven eccentric shaft, the device drives the screen body in a back-and-forth linear motion. By combining the material's self-weight with the inclination angle of the screen surface, it achieves efficient separation of materials from fine to coarse based on particle size. The equipment features a rational structural design, stable operation, and high screening efficiency, while offering the flexibility to screen multiple product specifications through easy mesh replacement. Known for its simple operation, high screen utilization, and small footprint, the device supports customization and is widely used as a supporting component in various production lines.
Vibration Frequency
Belt width
Power
Reciprocating screens are available in single-layer and multi-layer configurations, designed for particle size grading and screening of materials that have undergone crushing or pulverization. They serve as critical equipment in tire granulation or rubber powder production lines. By matching screens appropriately, multiple specifications of finished products can be screened simultaneously. The process for replacing screens is simple, and the equipment offers easy operation, high screen utilization, a small footprint, and convenient installation. It is commonly used as supporting equipment in production lines, featuring low noise and zero pollution.
The motor drives the rotation of an eccentric shaft, and through a pull rod, the rotational motion is converted into the reciprocating linear motion of the screen body. Utilizing the material's self-weight and the installation inclination angle of the screen body, the materials are discharged through the screen holes in order from fine to coarse, thereby achieving the objective of material screening.
Material Solution
Advantages of Reciprocating Screen
Main Parameters Of Reciprocating Screen
| Model | Width (mm) | Power (kW) |
| WF800 | 800 | 11.5 |
| WF1000 | 1000 | 18.5 |
| WF1100 | 1100 | 22 |
Note: The above capacity data is based on the regular throughput of medium-hard materials.The actual operating performance of the equipment may vary due to feeding conditions, material particle size, material type and moisture content.

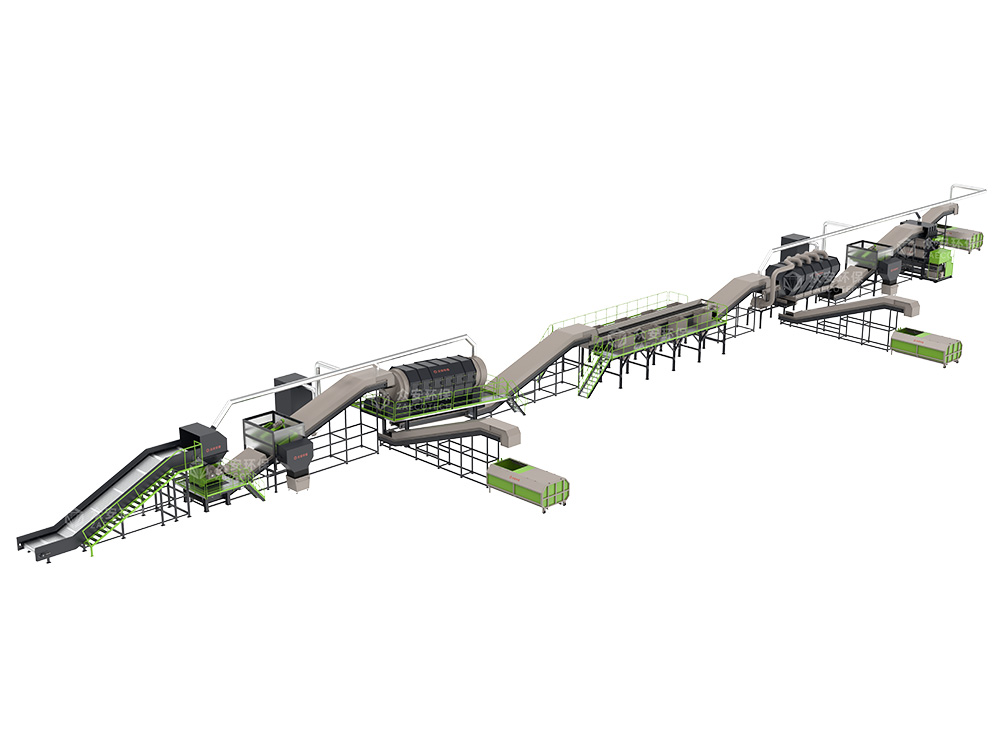

Reciprocating Screen Application

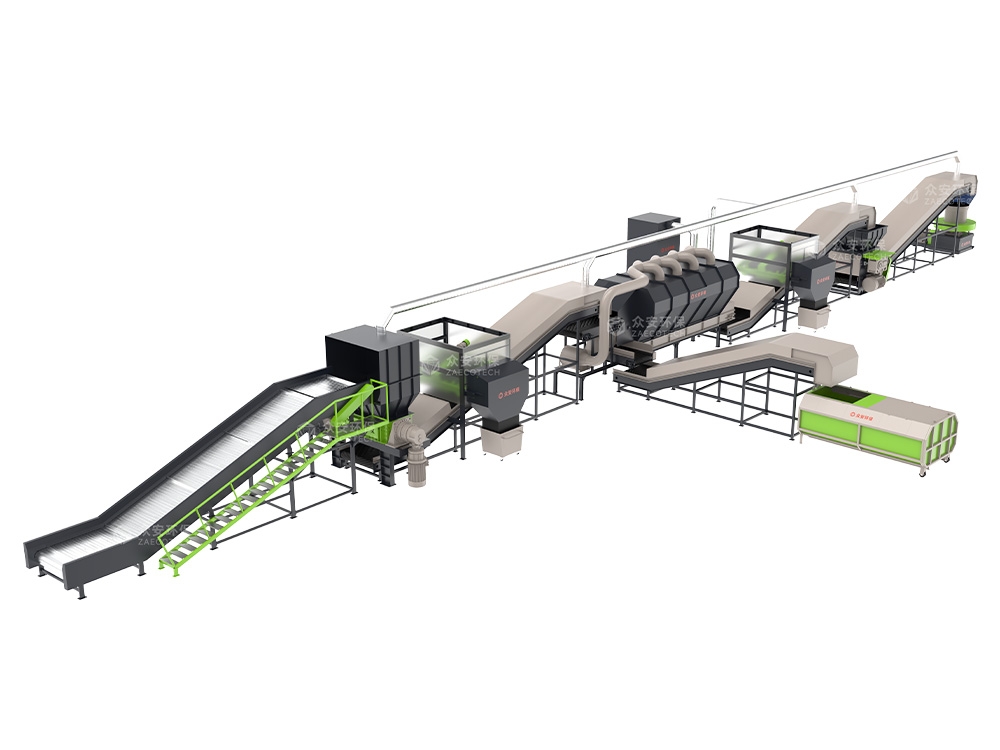

Our reciprocating screens are high-efficiency linear separators designed for the steady classification and uniform distribution of bulky waste materials. Featuring a robust horizontal driving mechanism and multi-stage screening decks, these units excel at removing fines and grading materials in heavy-duty environments like MSW processing and construction waste recovery.

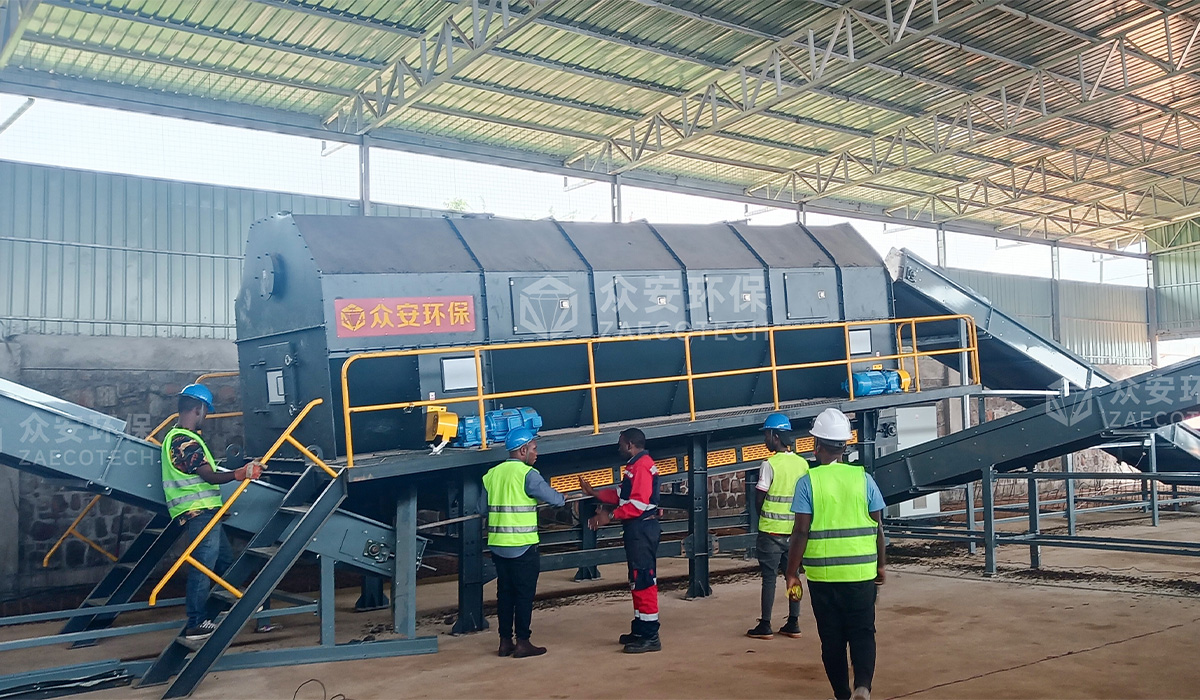

In this Municipal Waste Sorting Project, our WF-series reciprocating screens serve as the primary stage for material classification. With a robust width of up to 1100mm, the system effectively thins out dense material layers, ensuring a uniform feed for downstream optical sorters or shredders while removing under-sized heavy fractions with high operational stability.
This Construction Waste Processing System utilizes our heavy-duty reciprocating technology with a 22 kW drive to handle abrasive and bulky materials. The equipment's precise linear motion ensures efficient separation of soil, stones, and fines from recyclables, significantly reducing wear on secondary processing equipment and improving overall system throughput.
All our machines come with a 12-month warranty covering non-human damage and manufacturing defects. Spare parts and technical support are provided during the warranty period.
Production time typically ranges from 10 to 25 working days depending on the model and order quantity. Shipping time varies by destination, and we’ll provide an estimated delivery schedule once your order is confirmed.
Yes, we provide customized solutions based on your material type, capacity, and site conditions. Our engineering team will design the machine configuration that best fits your needs.
We offer full technical support via email, phone, and video guidance. For major installations, we can arrange on-site engineers if required. Our service team ensures smooth operation after delivery.
Please share details such as required capacity, input material, output size, power preference, and destination port. With this information, our sales team can offer an accurate and competitive quotation quickly.
