The global recycling industry faces a persistent, highly destructive mechanical failure mode when processing flexible, stringy, and high-elongation materials: shaft coiling and thermal binding. Whether a facility is processing post-consumer soft packaging films, agricultural greenhouse wraps, woven polypropylene sacks, scrap garments, post-consumer carpets, or industrial nylon fibers, traditional size-reduction equipment inevitably grinds to a halt. As high-speed or poorly sealed rotors engage ductile polymers and long textiles, the material refuses to fracture cleanly. Instead, it stretches, slips past blunt edges, and migrates centrifugally outward, coiling tightly around the rotor shaft and wedging into open end-plate clearances.
This rapid accumulation of tightly wound material generates intense sliding friction against stationary frame walls. Because flexible plastics and synthetic fibers have low softening thresholds, this frictional heat builds up instantly, melting the polymers into a solid, rubbery mass that seizes bearings, locks up heavy planetary gearboxes, and burns out drive motors. Overcoming this mechanical bottleneck requires purpose-built technology. Deploying specialized anti-wrapping shredders engineered with low-speed high-torque cutting kinematics, active hydraulic ram feeding, precision micro-gaps, and multi-stage labyrinth shaft seals completely eliminates coiling and thermal binding. This technical guide examines soft plastic and textile rheology, anti-wrapping kinematics, seal metallurgy, and plant integration strategies for processing stringy and film waste.
To understand the engineering brilliance behind anti-wrapping shredders, one must first analyze the physical and mechanical phenomena that cause conventional crushers and shears to fail when handling flexible materials:
High Tensile Elongation and Tenacity: Soft plastic films, non-woven fabrics, and continuous yarn bundles exhibit extreme elasticity, stretching under mechanical loads rather than fracturing cleanly under blunt impact.
Centrifugal Migration and Wedge Coiling: As conventional rotors spin, loose film strips and webbed textile panels are driven outward by centrifugal force, sliding along the rotor body until they wedge into open structural gaps between the rotating drum and housing end-walls.
Thermal Frictional Melting: Once a multi-layer coil of polymer film or synthetic fabric wraps around a shaft, continuous rotation creates extreme friction. This thermal energy melts the plastic into a rock-hard solid mass that fuses the rotor to the machine frame.
Discharge Screen Blinding: As stringy fibers wrap around cutting elements, they mat together and block the perforated discharge screen apertures, choking material throughput and causing severe chamber overloading.
Eliminating shaft coiling and thermal binding requires a synchronized, multi-tier mechanical design focused on active material compression, positive scissor-shear cutting, and absolute end-plate isolation:
To eliminate material bridging and ensure positive, controlled feeding of voluminous, fluffy films or tangled textiles, anti-wrapping shredders utilize an active, horizontal hydraulic pusher ram. Guided by real-time motor load telemetry via the central PLC, the ram compresses piles of loose waste firmly against the rotating cutting drum at a steady rate, preventing surge conditions and ensuring uniform material presentation.
Operating at 60 to 90 RPM via heavy-duty planetary gearboxes, the solid-steel rotor features precision-milled pocket housings holding indexable square cutting inserts. These tools pass against adjustable stationary bed knives with a tight, uniform micro-gap clearance (0.5 mm to 1.0 mm), producing a clean scissor cut that severs elastic films and fiber bundles instantly before they can stretch and wrap.
The core defense against shaft coiling is advanced end-plate isolation. Anti-wrapping shredders incorporate multi-stage grease-purged labyrinth seals, hardened deflector rings, and open air-gap barriers between the cutting chamber and outboard bearing housings. This mechanical architecture blocks any migrating lint, thread, or film from reaching sensitive shaft seals.
Curved perforated screen cradles positioned beneath the rotor feature specialized hole geometries and beveled relief angles designed to prevent flexible flakes and fibrous lint from blinding the apertures, ensuring continuous material evacuation.
The table below summarizes mechanical durability, anti-wrapping efficacy, output uniformity, and operational uptime across standard shredders versus specialized anti-wrapping shredding machinery:
| Performance Metric | Standard Shredders / High-Speed Crushers | Specialized Anti-Wrapping Shredders |
|---|---|---|
| Shaft Coiling & Wrapping Risk | High; films and fibers wrap around shafts, causing thermal melting and motor seizure. | Zero / Eliminated via multi-stage labyrinth seals and precision micro-gaps. |
| Cutting & Sizing Mechanism | High-speed impact or wide gaps; stretches ductile plastics rather than cutting. | Low-Speed Rotary Scissor Shear with tight 0.5 mm bed knife clearances. |
| Wear Resistance & Metallurgy | Standard structural steels suffer rapid abrasive scouring from grit and contaminants. | Hardox 500 Armoring & D2/DC53 Steels designed for tough fibrous scrap. |
| Feed & Overload Reliability | Frequent bridging and feeding bottlenecks with bulky film bales or loose garments. | Active Hydraulic Pusher Rams & Auto-Reversing Drives ensuring continuous uptime. |
Processing abrasive soft plastics and post-consumer textiles—frequently containing mineral fillers, zippers, buttons, or embedded soil—subjects internal shredder components to continuous sliding friction and impact shock:
Vacuum-Hardened D2 / DC53 Tool Steels: Cutting inserts and bed knives are forged from high-carbon, high-chromium tool steels heat-treated to 56–58 HRC, ensuring long service life and sharp edge retention under continuous multi-shift operation.
Four-Way Indexable Cutting Inserts: Square concave cutters can be rotated 90 degrees when an edge shows wear, multiplying usable blade service life fourfold before requiring workshop regrinding or replacement.
Hardox 500 Chamber Armoring: Internal sidewalls, feed hoppers, and screen cradles are lined with bolted, replaceable Hardox 500 wear plates, protecting the structural chassis from abrasive scouring.
Outboard Bearing Isolations: Heavy-duty spherical roller bearings are housed externally in split plummer blocks separated from the cutting chamber by open air gaps and multi-stage grease-purged labyrinth seals to block fine lint and moisture.

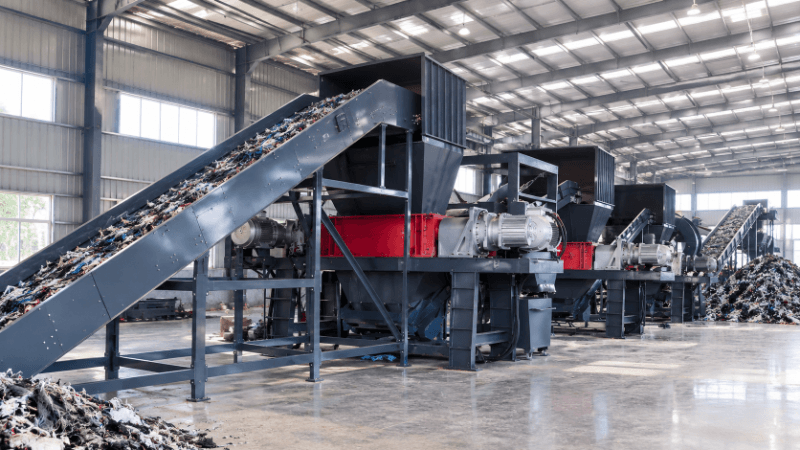

A high-performance soft plastic or textile recycling facility integrates an anti-wrapping shredder into a synchronized, continuous production line:
Stage 1: Waste Reception and Metering: Bales of post-consumer film, agricultural wrap, or discarded garments are unbundled and loaded onto heavy slat conveyors feeding the shredder hopper.
Stage 2: Precision Anti-Wrapping Shear Shredding: The hydraulic pusher ram feeds material into the low-speed rotary shear, cleanly slicing elastic films and fibers against bed knives without coiling, passing them through calibrated bottom sizing screens.
Stage 3: Pneumatic Transfer and Downstream Processing: Sized flakes and clean textile fibers are captured by negative-pressure hoods, pneumatically conveyed past cross-belt magnetic separators to remove stray metal fasteners, and fed directly to washing lines or pelletizing extruders.
Operating soft plastic and textile recycling plants under continuous multi-shift schedules requires rigorous environmental safety, dust control, and fire prevention engineering:
Optical Spark Detection and Water Quenching: Dry textile lint, synthetic fibers, and friction sparks create severe fire risks. Infrared sensors positioned along conveyor lines trigger atomizing water foggers within milliseconds to suppress ignition.
Enclosed Pulse-Jet Dust Collection: Connecting all discharge chutes to a negative-pressure pulse-jet baghouse filtration system captures fine airborne lint and particulate matter, maintaining a clean, safe working environment.
Intelligent Reversing Drivetrains: If an uncrushable heavy metallic object enters the cutting chamber, the central PLC detects the electrical torque spike within milliseconds and executes an automatic reverse cycle to clear the obstruction.
Successfully recycling soft plastics, packaging films, and post-consumer textiles requires moving away from conventional crushers toward specialized mechanical engineering. Deploying anti-wrapping shredders—engineered with active hydraulic pusher rams, low-speed high-torque rotary scissor shears, precision micro-gaps, and multi-stage labyrinth shaft seals—solves the persistent industrial problems of shaft coiling, thermal melting, and equipment jamming. This robust engineering approach ensures high operational uptime, pristine material output, and long-term economic viability for modern film and textile recycling facilities.
