A Fiberglass FRP shredder machine is designed to handle composite waste that is difficult to process with conventional shredding equipment. Fiberglass reinforced polymer (FRP) combines strong fibers with a resin matrix, creating a material that is lightweight, durable, and highly resistant to mechanical damage.
These properties are useful during product operation but create challenges when FRP products reach the end of their service life. Large FRP components, fiberglass scraps, and composite waste require strong and stable size reduction before further recycling or material separation.
For this reason, choosing a shredder specifically suited to fiberglass and FRP materials is an important step in building an efficient composite waste recycling system.
FRP is not processed in the same way as ordinary plastic or soft industrial waste. Its composite structure creates several challenges during size reduction.
Fiberglass reinforcement gives FRP products high mechanical strength. Large composite pieces can resist conventional cutting and crushing forces, especially when they contain thick structural sections.
Fiberglass can cause significant wear on cutting components. If standard blades are used for long-term processing, wear may increase maintenance frequency and affect the stability of the shredding process.
FRP waste can come in different shapes, thicknesses, and structures. Production scraps may be relatively small, while products such as wind turbine blades can contain large and thick composite sections.
Therefore, the shredding system needs to be selected according to the actual material rather than simply based on general waste-processing specifications.
A dedicated Fiberglass FRP shredder machine provides the initial size reduction required for difficult composite waste.
The main objective is not to complete the entire recycling process in one step, but to transform large or irregular FRP waste into a more manageable material for subsequent processing.
FRP requires considerable cutting force. A high-torque shredding system can apply strong shearing and tearing forces to reduce large composite materials into smaller pieces.
Because fiberglass is abrasive, wear-resistant cutting components are important for long-term operation. ZAECOTECH uses high-alloy steel blades and wear-resistant components on its industrial shredding equipment to improve durability when processing demanding waste streams.
For commercial recycling facilities, stable operation is more important than simply achieving a high instantaneous cutting force. The shredding system should maintain consistent material feeding and size reduction during continuous operation.
The required particle size depends on the next processing stage. FRP shredding can therefore be configured around the downstream crushing, screening, separation, or grinding requirements.
ZAECOTECH's industrial waste disposal system is designed for materials including FRP, wind turbine blades, and other composite waste, with system capacities of approximately 5–50 t/h and adjustable shredding sizes of 80–500 mesh. Actual capacity and output depend on material characteristics and project configuration.
Shredding is normally the first stage rather than the final step of FRP recycling.
A typical processing concept is:
FRP Waste → Feeding → Primary Shredding → Secondary Crushing → Screening & Separation → Fine Grinding
The first stage reduces the volume and size of large composite waste. Secondary crushing can further reduce the material, while screening and separation help classify different fractions.
For projects aiming to recover fiberglass or other useful components, fine grinding and separation can be added according to the required final product.
This approach allows the recycling system to be designed around the final utilization target rather than forcing every project to use the same equipment configuration.

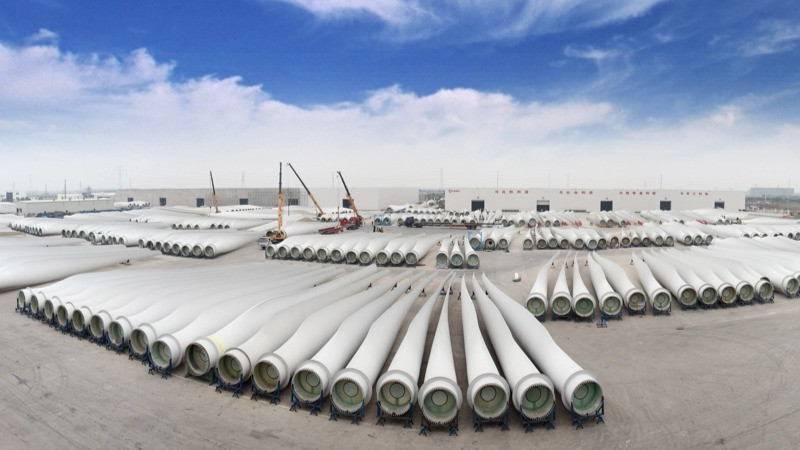

Wind turbine blades are one of the most demanding FRP waste streams because of their large dimensions and composite structure.
Before entering the shredding line, oversized blades generally need to be cut into transportable sections. The prepared blade sections can then enter the primary shredding process.
The overall processing concept can include:
Blade Cutting → Primary Shredding → Metal Separation → Secondary Crushing → Material Sorting → Fine Grinding
The purpose of the first shredding stage is to make the large composite structure easier to transport, handle, and process through the following equipment.
For wind turbine blade recycling, the final objective may include the recovery of fiberglass, resin-related fractions, and core materials such as balsa wood. The exact separation process depends on the blade structure and the desired recycled products.

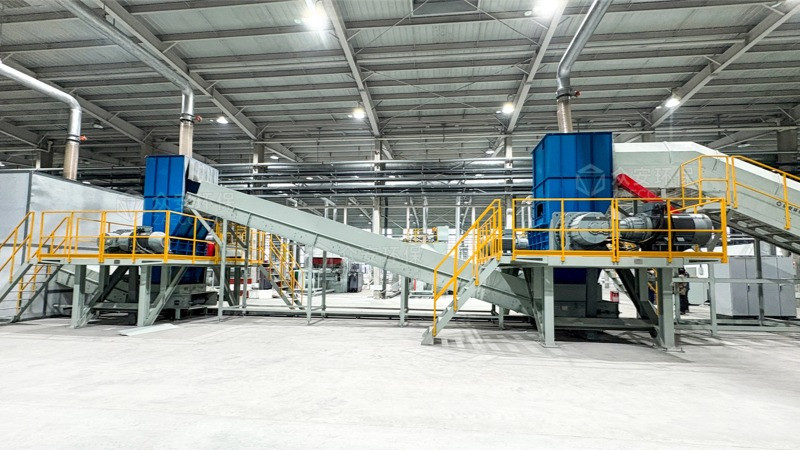

ZAECOTECH has applied its composite waste processing technology to a wind turbine blade recycling project in Xinjiang.
The project focuses on retired wind turbine blades and uses a combination of shredding, crushing, grinding, and separation equipment rather than relying on a single machine.
The processing concept includes:
Automatic Feeding → Shredding → Crushing → Sorting → Fine Grinding
The project demonstrates how a heavy-duty shredding system can serve as the front-end preparation stage for large-scale FRP composite recycling. Downstream processing then further reduces and separates the material for resource recovery.
This type of integrated approach is particularly suitable for large composite waste streams where simple volume reduction is not the only objective.
Before purchasing an FRP shredder, buyers should focus on four basic factors.
The thickness and structure of the FRP waste directly affect the required cutting force and shredder configuration.
The equipment should match the expected throughput and work continuously without creating bottlenecks in downstream equipment.
Output size should be determined according to the next processing stage. A primary shredder does not necessarily need to produce the final recycled particle size.
Because fiberglass can accelerate component wear, blade material, replaceability, and maintenance design should be considered when evaluating different machines.
A Fiberglass FRP shredder machine provides an important size-reduction solution for difficult composite waste. Unlike conventional waste materials, FRP combines high strength with abrasive fiberglass reinforcement, requiring equipment with sufficient torque, durable cutting components, and stable operation.
For simple volume reduction, a dedicated FRP shredder may be sufficient. For material recovery, the shredder can be integrated with crushing, screening, separation, and grinding equipment to form a complete recycling system.
With experience in FRP and wind turbine blade processing, ZAECOTECH provides customized shredding and recycling solutions based on material characteristics, processing capacity, output requirements, and downstream recycling goals.
