The global demand for recycled Polyethylene Terephthalate (rPET) and High-Density Polyethylene (HDPE) flakes is driving plastic processors toward high-throughput recycling lines. However, profitability depends heavily on controlling long-term operating expenditures (OpEx). Investing in a high-performance machine for recycling plastic bottles is essential, but plant managers must look beyond initial capital costs.
Processes like size reduction are particularly wear-intensive. Loose hollow bottles, dense baled PET, and abrasive contaminants like sand or metal caps cause rapid blade wear, screen clogging, and unexpected downtime. Reducing maintenance costs requires specialized shredder technology designed for high durability and consistent flake sizing.
Selecting a recycling machine requires evaluating the Total Cost of Ownership (TCO) across its operational life. Focusing solely on upfront equipment costs (CapEx) can lead to higher long-term expenses if the machine requires frequent parts replacements.
| Expense Category | Operational Impact | Cost Driver |
| Cutter Replacement & Resharpening | High | Rapid blade dulling caused by PET toughness, glass fragments, or metal caps. |
| Unplanned Machine Downtime | High | Shaft wrapping, hydraulic jams, or gear drive overloads stopping the entire line. |
| Energy Consumption | Medium | Inefficient motor sizing and rotor slippage on light hollow bottles. |
| Downstream Material Waste | Medium | Inconsistent flake sizing or excessive fine dust creation lowering rPET flake value. |
A well-engineered single shaft shredder addresses these cost drivers through intelligent mechanical design, lowering maintenance intervention and maximizing plant availability.
Blade wear is the single largest maintenance expense in plastic bottle size reduction. Conventional granulators and light-duty crushers use straight knives that dull quickly and require frequent removal for resharpening.
Modern single shaft shredders utilize modular, indexable cutter designs that significantly extend service intervals:

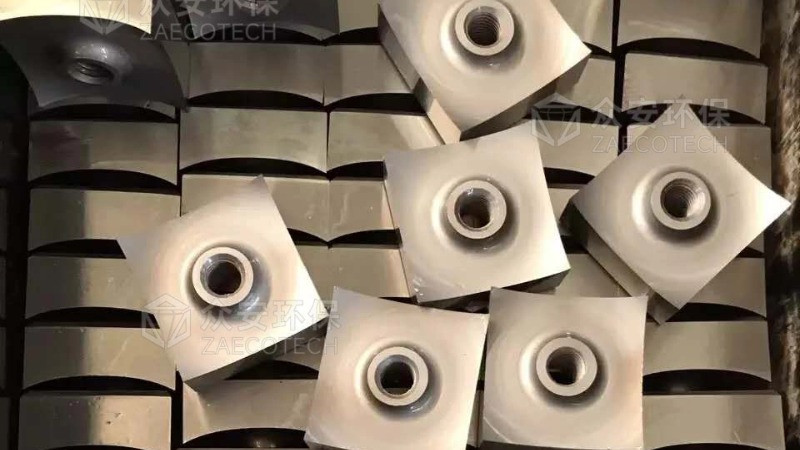

Indexable 4-Way Rotating Knives: Square cutter blades feature four usable cutting edges. When one edge dulls, operators simply rotate the blade 90 degrees to expose a fresh edge. This design quadruples blade life before requiring replacement.

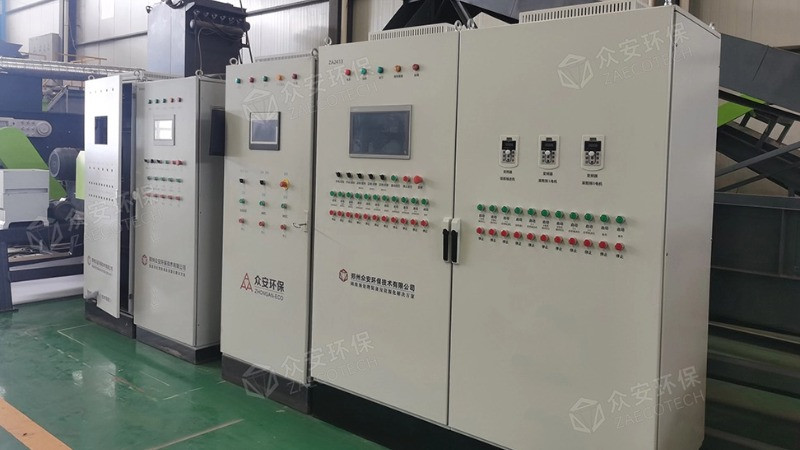

PLC Auto-Reverse Protection: When processing dense baled PET bottles or uncrushed bulk containers, momentary torque spikes can occur. Integrated Programmable Logic Controller (PLC) systems detect overload thresholds and instantly reverse rotor direction to clear obstructions without operator intervention.
External Heavy-Duty Bearings: Rotor bearings are mounted outside the shredding chamber to prevent fine dust and moisture from entering housing seals, protecting bearings from premature contamination and failure.
For recycling facilities seeking high output paired with low maintenance overhead, heavy-duty industrial shredders offer the optimal balance of cutting torque and mechanical durability.
The
Key Technical Features & Operational Advantages
Hydraulic Ram Feeder: A internal hydraulic ram actively pushes loose or baled PET bottles against the rotating cutter shaft. This eliminates rotor slippage and material bouncing common with light hollow containers.
Precision Adjustable Screen Mesh: Interchangeable discharge screens allow plant operators to strictly define output particle sizes (typically 20mm to 40mm), delivering uniform flakes directly into downstream washing lines.
High-Torque Drive System: Low-speed, high-torque rotor operation minimizes dust generation, noise levels, and power consumption while effectively processing tough polymers.
Robust Welded Frame: Constructed from high-strength heavy plate steel to absorb mechanical vibration and withstand severe continuous duty.
Downstream processing equipment, such as friction washers, flotation tanks, and pelletizing extruders, relies on uniform feed material. Irregularly sized flakes or excessive dust create processing bottlenecks and lower the end market price of rPET flakes.
Controlled shredding with an integrated discharge screen yields several operational benefits:
Uniform Washing Performance: Consistently sized flakes allow washing chemicals and friction washers to remove labels, adhesives, and organic residues efficiently.
Reduced Melt Fluctuation in Extrusion: Homogeneous flake sizes melt evenly inside pelletizing extruders, preventing surging and improving output quality.
Maximum Market Valuation: Clean, dust-free PET flakes command premium market prices for fiber spinning, bottle-to-bottle packaging, and strapping tape manufacturing.
Optimizing your plastic bottle recycling plant requires machinery designed to lower maintenance labor, extend wear-part service life, and maximize daily output.
ZAECOTECH manufactures high-performance single shaft shredders, heavy-duty crushers, and complete plastic pre-treatment lines tailored to your specific material capacity goals.
Ready to lower your operational costs and increase shredding efficiency? Contact the ZAECOTECH engineering team today to request technical specifications, custom rotor configurations, and detailed equipment quotes.
