Rapid urbanization and expanding municipal solid waste (MSW) volumes require efficient waste management infrastructure. Municipalities and waste operators can no longer rely on unmanaged landfills. Instead, they require automated sorting technology to process complex waste streams, extract recyclable materials, and reduce landfill volumes.
Partnering with an experienced MSW sorting plant manufacturer is essential for designing processing lines capable of handling unsorted municipal waste. Transforming high-moisture, heterogeneous waste into clean recyclables and alternative fuels demands heavy-duty machinery, robust mechanical separation, and reliable system integration.
Unsorted municipal solid waste is one of the most difficult material streams to process. It typically contains high-moisture organic food waste, flexible plastic films, glass, textiles, ferrous and non-ferrous metals, and construction debris.
Low-tier sorting lines frequently fail under these severe operating conditions. Common operational failure points include:
Frequent Jamming & Shaft Wrapping: Plastic films and textiles wrap around rotating components, stopping production lines.
Screen Blindage & Clogging: Sticky organic material mixes with fine dust, blinding trommel screens and reducing separation efficiency.
Rapid Abrasive Wear: High sand, glass, and grit content accelerate wear on conveyor belts, shredder blades, and screen plates.
A qualified MSW sorting plant manufacturer addresses these challenges by integrating anti-wrapping cutter geometries, self-cleaning screens, and heavy-duty wear liners into the line topology.
Modern MSW recovery lines utilize a multi-stage mechanical and sensor-based separation process to separate mixed waste into clean, monetization-ready fractions:
| Processing Stage | Equipment Module | Primary Engineering Function |
| Bag Opening & Primary Shredding | Heavy-Duty Dual-Shaft / Single-Shaft Shredder | Opens waste bags, breaks bulky items, and liberates encapsulated waste without pulverizing glass or batteries. |
| Organic & Size Screening | Heavy Trommel Screen / Disc Screen | Separates wet organic waste (undersize fraction, typical <50mm) for composting or anaerobic digestion from inorganic fractions. |
| 3D vs. 2D Material Separation | Ballistic Separator | Separates rigid 3D containers (bottles, cans) from 2D light fractions (plastic film, paper) and heavy rolling items. |
| Ferrous & Non-Ferrous Extraction | Overband Magnet & Eddy Current Separator | Pulls out scrap iron, steel cans, and aluminum containers to generate scrap revenue and protect downstream machinery. |
| Air & Optical Classification | Air Classifier & NIR Optical Sorter | Air separators lift light flexible plastics for RDF production, while Near-Infrared (NIR) sorters eject target polymers (PET, HDPE, PP). |
Validating equipment durability requires field operational data from challenging waste environments.

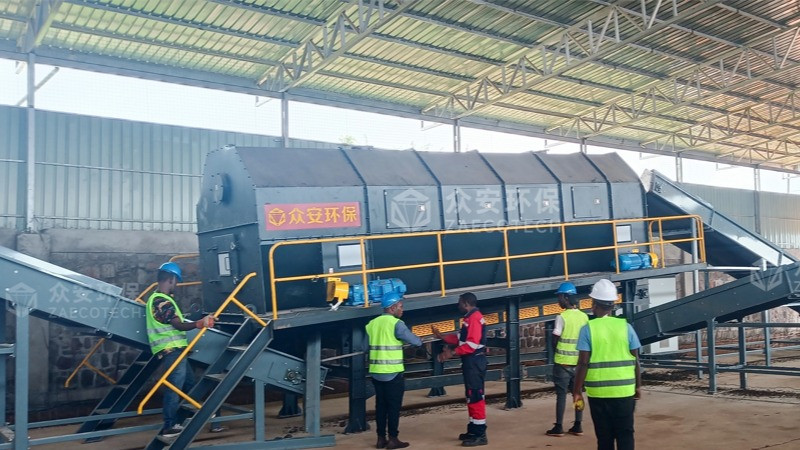

A practical execution of high-capacity municipal solid waste sorting is demonstrated by the
Project Highlights & Operational Performance
Application: Full-scale municipal solid waste (MSW) sorting and resource recovery facility.
Feedstock Material: Unsorted, high-moisture municipal solid waste containing dense organic fractions, mixed plastics, and metals.
System Architecture: Industrial bag openers, heavy-duty trommel screens, magnetic separators, manual sorting platforms, and heavy-duty waste compactors.
Operational Results: Successfully diverts high daily volumes of municipal waste from local landfills. The system isolates wet organics for stabilization, extracts clean recyclables, and delivers high uptime under continuous tropical operating conditions.
Selecting the right engineering partner ensures your waste recovery facility meets its long-term diversion targets and financial goals:
Robust Heavy-Duty Manufacturing: Check for heavy structural steel frames, wear-resistant alloy blades, and reinforced conveyor belts engineered for abrasive materials.
Anti-Clogging & Anti-Wrapping Technologies: Verify that shredders and screening modules incorporate anti-wrapping cutter designs and self-cleaning mechanical features.
Centralized Automation & Control: Integrated Central PLC systems with touchscreens provide real-time monitoring, auto-reversing jam protection, and system diagnostics.
Turnkey EPCO Capability: Leading manufacturers offer complete Engineering, Procurement, Construction, and Operational support, from initial waste composition analysis to site commissioning.
Building a successful waste recovery facility requires reliable equipment engineered specifically for aggressive municipal waste feeds.
ZAECOTECH manufactures heavy-duty MSW sorting equipment, bag openers, screening systems, and complete turnkey material recovery facilities (MRFs) designed to maximize resource recovery and minimize operational downtime.
Planning a municipal solid waste sorting project or upgrading an existing recovery facility? Contact the ZAECOTECH engineering team today to receive detailed technical specifications, custom plant layouts, and complete machinery quotations for your facility.
